READ THE DESCRIPTION BEFORE PURCHASING

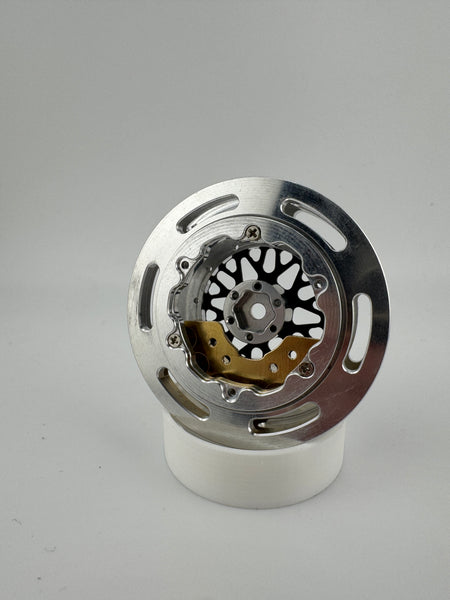

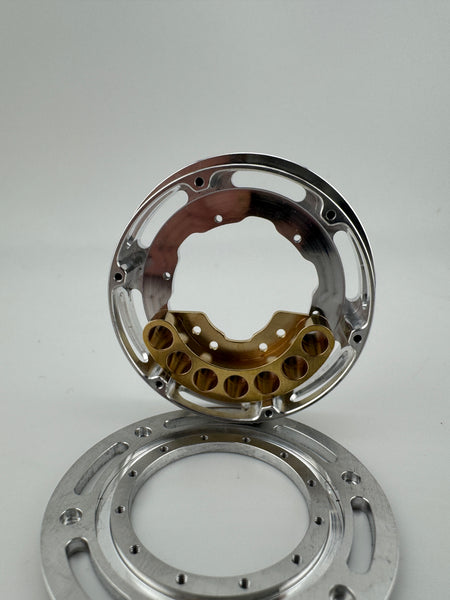

Want the advantages of the 1.8 Outlaws but don't want to cut your tires? If so, these wheels are for you. Based on the 1.8 Outlaw outer diameter but has a 1.3 bead lock. The new single stack brass hanger actually weighs more than a double stack printed hanger. As a matter of fact, an empty brass hanger weighs more than a loaded, printed hanger.
Are you looking for an easy install? If so keep looking because it isn't here. I'm not gonna lie they can try your patience, but the reward is worth the effort. Plan on fitting them to YOUR setup. Different axles and hexes can change the already tight tolerances.
For use with the Low Blow knuckles up front it's a simple bolt on installation with +2 hubs. Assemble the wheel with hanger inside, install on axle, attach hanger to knuckle, tighten wheel.
For rear use you'll need the rear hanger brackets. You will need to add a couple nuts between the hanger and bracket as spacers for standard hubs. Assemble the wheel with hanger inside, install on axle, attach hanger to bracket, tighten wheel.

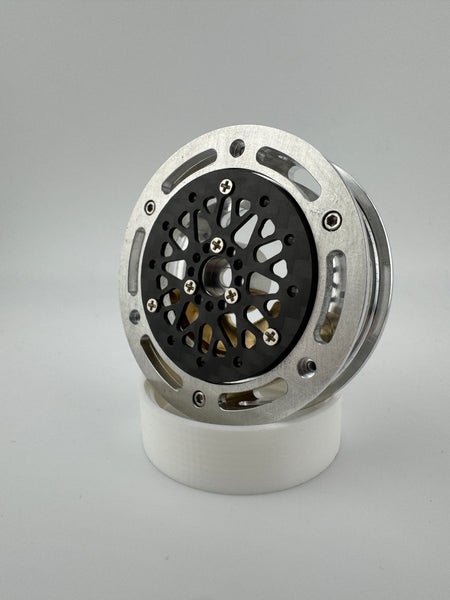

You will have to have access to the hanger mounting screws through the wheel face, keep that in mind when choosing faces. I recommend the HP Signature as there's tons of room for activities.
You have to remove the hanger to remove the wheel, plan ahead.
The rear bead lock ring must use the included low profile PHILLIPS screws for front use. Yes, I said Phillips, but if you use a couple hex head screws to get it seated the Phillips can be easily swapped out. If you choose to swap hardware, make sure they don't protrude into the wheel barrel as they can catch on the hanger.
The front uses our existing 1.3 faces. The hanger needs to be in the wheel before you install the rear rings.

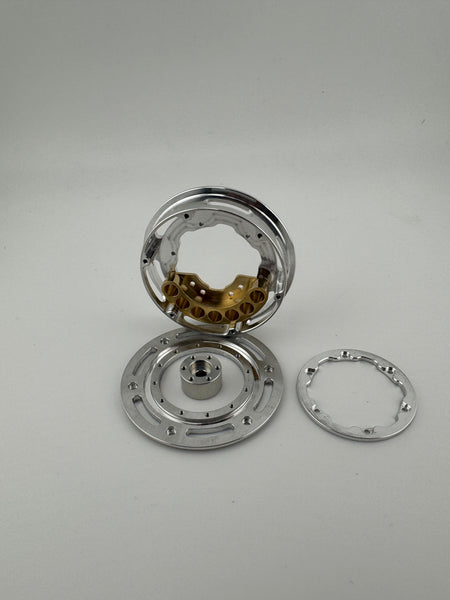

FULL SET INCLUDES
4 - Complete wheel barrels
4 - Rear bead lock rings
4 - Empty brass hangers
4 - +2 hubs
Hardware for rear rings
PAIR INCLUDES
2 - Complete wheel barrels
2 - Rear bead lock rings
2 - Empty brass hangers
2 - +2 hubs
Hardware for rear rings
Wheel faces, hardware, slugs and rear hanger brackets sold separately.
