READ THE ENTIRE DESCRIPTION BEFORE PURCHASING

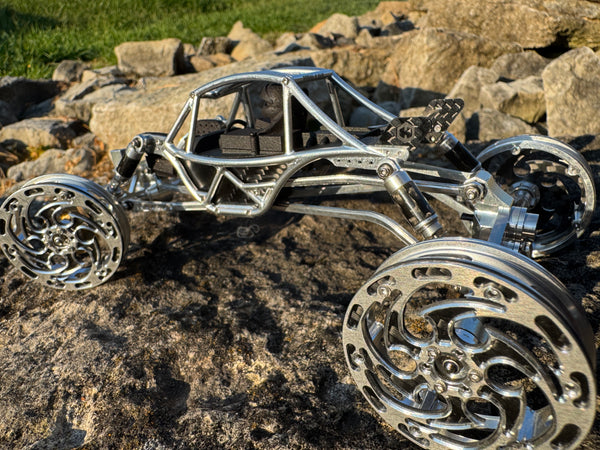

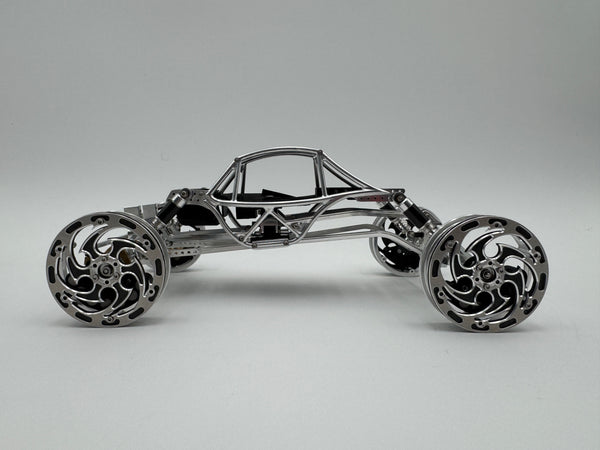

I present to you the Mercury, a billet Dementor in 3D! A no expense spared project to bring you the elite in Hard Park style. Lots of time was spent in the design to hide the wires and electronics to keep it as clean as possible. Attention was given on every component to add detail throughout the rig. 56 were made and 50 will go up for sale. Numbers 1, 25, 45, 54, 55, 56 are for my personal collection and give aways.
If you get a pre-order and have a RTR I will try my best to get you a matching number. You MUST leave a note with your number in the cart. All others will be shipped at random. Expect two weeks after purchase before it will ship.
Features

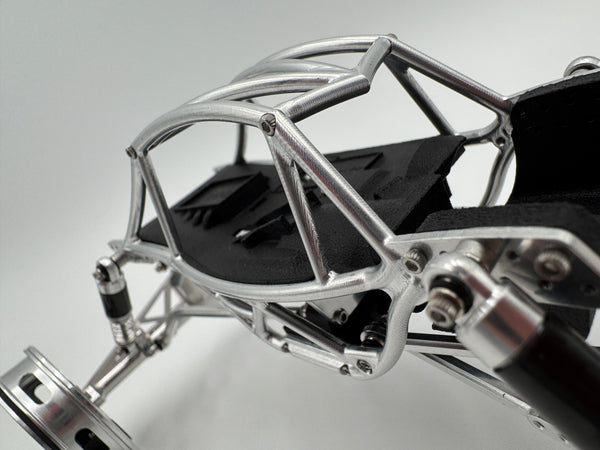

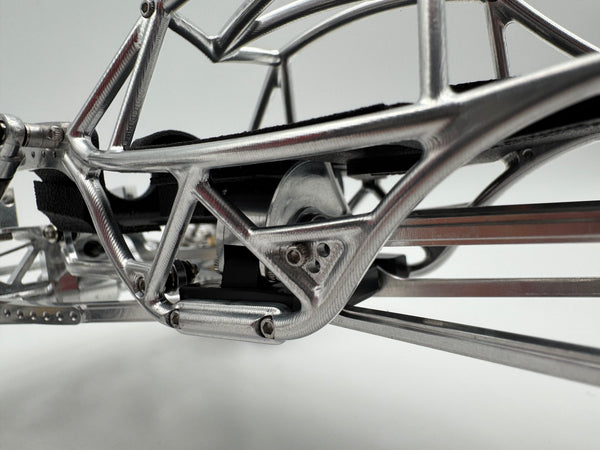

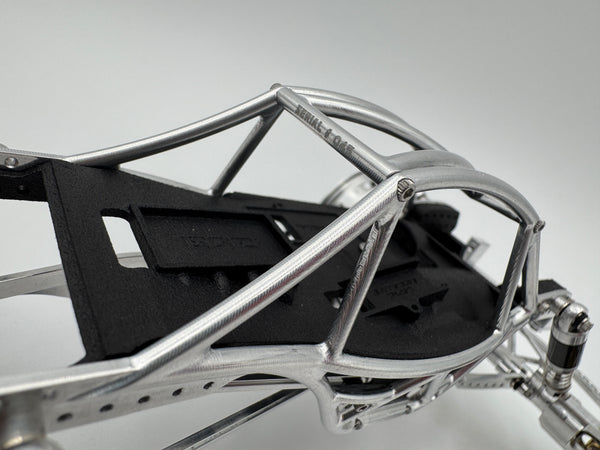

Laser etched, numbered chassis milled from 7075 aluminum. Features carbon fiber panels to conceal electronics and carbon fiber number plates engraved with the HP logo.

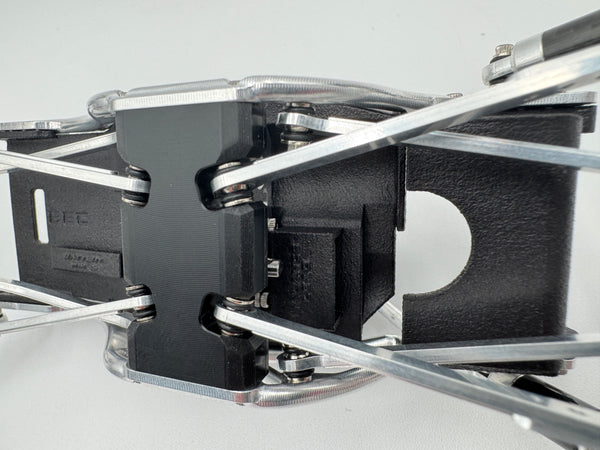

Low profile DWS transmission with billet cases and a delrin skid.

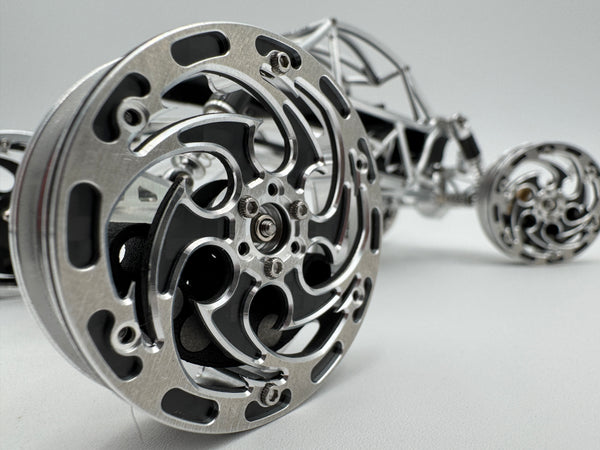

Hybrid 1.8 Carbon/Aluminum wheels. Faces and rear rings are milled with recessed screws and lots of detail.

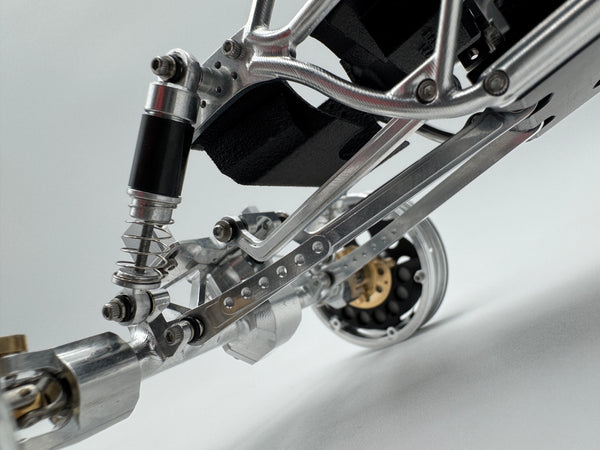

Machined 7075 links, fronts with threaded shock mounts. DXL lengths.
HP axles with two servo mounts. One center mount and our BOA.

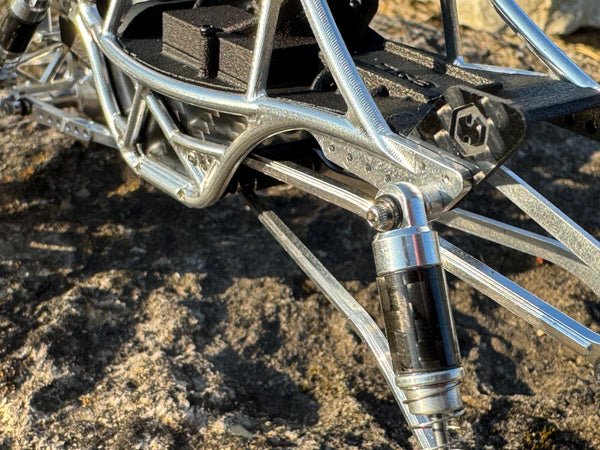

HP shocks with carbon spinners and a set of springs.

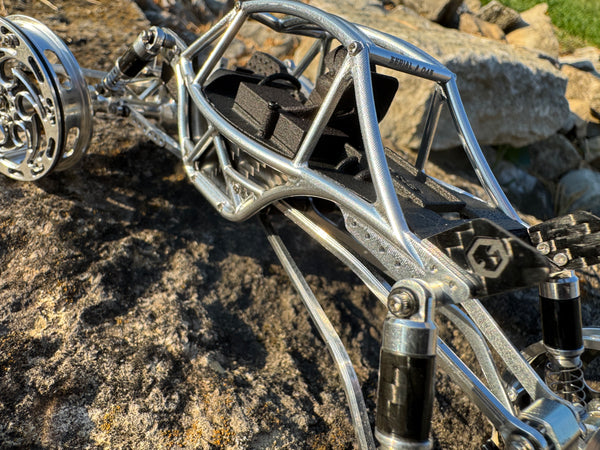

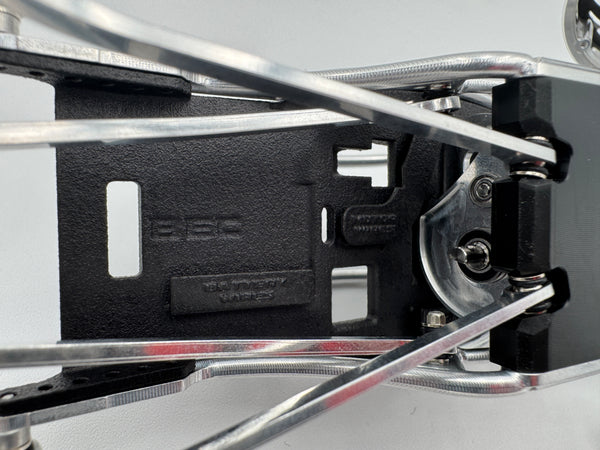

An interior with “driver”. It features wire management channels underneath to keep the look clean and contain the chaos. The driver holds the receiver and battery plug and the Esc sits behind him, exposed, mimicking the engine.
Beautiful packaging for that premium unboxing experience.
-WARNINGS-READ THIS BEFORE YOU BUY-
This build is NOT for the beginner. It’s a very challenging build. I will have a build video that will be on the YouTube channel to help you along.
You must know how to solder. You will need to use the FS2A receiver for the GT5 transmitter, or a smaller receiver. You will be cutting plugs off the servo and esc to solder directly to the receiver. You will be soldering the motor wires directly to the esc too. The esc battery lead will more than likely need shortened for a proper fit.
Two servo mounts are included, center for looks, boa for performance. If you choose the center mount with the chassis mounted battery the driveshaft will hit it. The suspension can still fully articulate but has limited down travel. A BOA and extra chassis brace is included for maximum performance.
RECOMMENDED ELECTRONICS / COMPLETION PARTS
These are the exact ones I designed the kit around. Substitute ones can be used but must be the same size or smaller. There is not enough room for larger ones.
Motor - Micro Komodo
Transmitter - Fly Sky GT5
Receiver - FS2A
Battery - HP 3s 200mah
Esc - Dinky D-Drive
Servo - 3Flow9 Torrent w/ 3Flow9 servo horn
Driveshafts - Front - Birdfinger driveshaft or cutdown Deadbolt rear.
Rear - Birdfinger or Gladiator rear
Tires - Your choice obviously, I recommend 68mm or larger, cut for 1.8 wheels
INCLUDES
Chassis with 3d printed interior, “driver” and battery tray, carbon panels and number plates
Front and rear HP axles
DWS-L Transmission
Set of Outlaw 1.8 wheels
Full Set of machined links
A set of HP shocks and springs
2 styles of servo mounts
Hardware, spacers and braces
Battery lead extension wire for BOA mount
Outlaw tire jig
